Product Introduction：

The "Tianjian" brand sewage lifting device is designed for occasions where gravity cannot drain the sewage, and completely solves the problems of basement sewage discharge, odor, maintenance, etc. The equipment is mainly composed of a PE closed water tank, a crushing cutting source or vortex pump, an intelligent control box, and valve pipes. The liquid level controller senses the liquid level in the box to realize the automatic start and stop of the motor. The fully automatic operation can be switched manually and automatically, and the dynamic current and voltage values ​​can be displayed. The fault status display has automatic detection, and the fault alarm sound is displayed on the panel for easy troubleshooting. BA dry node (optional), RS485 (optional), the motor can realize overload, no-load, missing phase (only three phases) and other comprehensive protection functions.

Product Application：

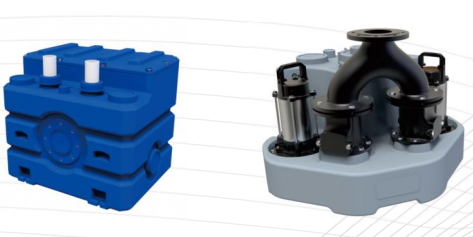

The TJLift100 series is the smallest volumetric pressure drainage model of Tianjian's built-in PE sewage lifting device. It is mainly used for drainage of a single bathroom in the basement of a villa and drainage of basins installed in offices or commercial places. It can be installed in the foundation pit or under the basin. The main unit of the TLift100 series sewage lifting device is made of corrosion-resistant PE material, with a compact design structure, including 3 side De110 and 1 De110 upper water inlet, as well as 3 side De50 water inlets. The water outlet diameter is De63. The ventilation diameter is De50.

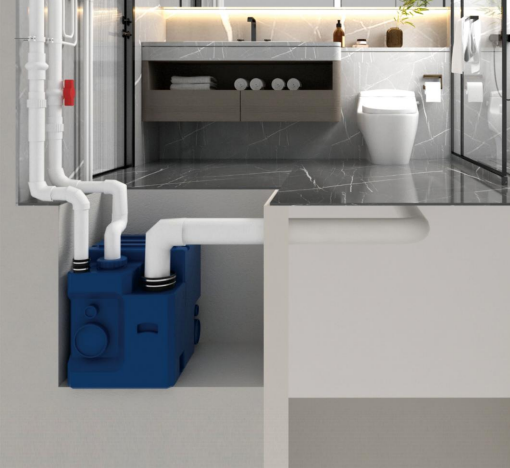

Installation Example：

Main performance of the equipment:

● Single pump system

● Easy installation of water inlet

● With cutting function

● Nominal volume of the box: 100L

LCD display controller

Powerful protection function

● Maximum head: 16.4m

● Maximum flow: 24m³/h

● Medium temperature: ≤40°

· pH: 6-8

● Corrosion-resistant PE box

. Protection level of the whole machine (excluding the control box): IP68

Specifications：
